High purity quartz plates and discs manufacturing
Direct Factory · ISO Compliant Processing

Quartz Glass Plate / Discs / Bar

Manufactured by Donghai County Nivra Quartz Products Co., Ltd. from premium raw fused silica. Precision optical slicing, edge chamfering, laser drilling, and double-side optical polishing up to 20/10 scratch-dig standard.

Engineered Quartz Substrates, Sight Windows & Precision Bars

Donghai County Nivra Quartz Products Co., Ltd. provides high-purity optical fused quartz plates (JGS1, JGS2, JGS3), ground discs, polished quartz bars, and semiconductor-grade quartz wafers. Featuring over 92% light transmittance, ultra-low thermal expansion (5.5 × 10⁻⁷ /°C), and operating temperatures up to 1200 °C.

SiO₂ Purity ≥ 99.99% Optical Polish 40/20 & 20/10 Tight Thickness ±0.02 mm Deep UV to Far IR Spectrum
Optical Grade Customized High Quality Clear Fused Quartz Glass Sheet

Clear Fused Quartz Glass Sheet for Optical & Photovoltaic Substrates

$20.00 - $23.00 MOQ: 10 pcs
High Purity Ultra Clear High Purity Quartz Sheet

Ultra-Clear High-Purity Quartz Sheet for Laboratory Window & Sight Glass

$40.00 - $45.00 MOQ: 10 pcs

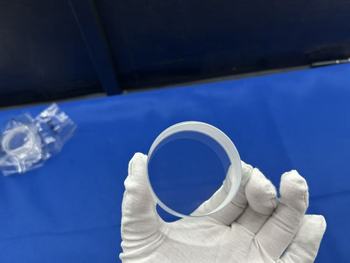

Custom Cut Customized High Quality Clear Fused Quartz Sheet

Precision CNC Cut Quartz Glass Plate with Polished Chamfered Edges

$30.00 - $35.00 MOQ: 10 pcs
Semiconductor Fast Dispatch Factory-Made High Purity Small Size Quartz Wafer

Factory-Made High-Purity Small-Size Quartz Wafer with Precision Thinning

$1.00 - $3.00 MOQ: 100 pcs
Best Value 180+ Sold Thin Clear Fused Silica Quartz Disc

Thin Clear Fused Silica Round Disc for Laser Optical Sensor Covers

$0.20 - $0.50 MOQ: 10 pcs

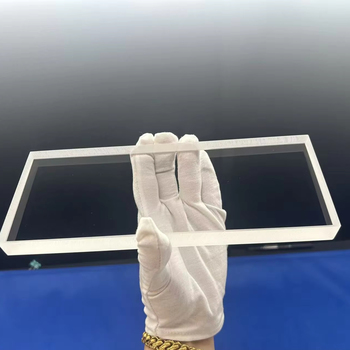

Heavy Duty Thick Fused Quartz Plate

Heavy-Wall Fused Quartz High Pressure Sight Glass and Viewport Flange Plate

$40.00 - $55.00 MOQ: 10 pcs

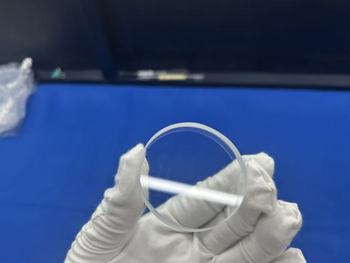

Top Seller 446+ Sold Standard Quartz Glass Sheet Plate

Standard Square Clear Quartz Substrate Sheet for PV Cell Fabrication

$2.25 MOQ: 10 pcs

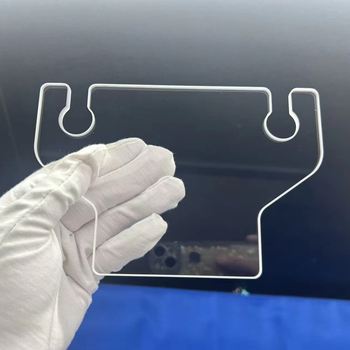

High Temp Thermal Resistant Quartz Glass Plate

Thermal-Shock Resistant Fused Silica Observation Plate (Up to 1200 °C)

$50.00 MOQ: 10 pcs

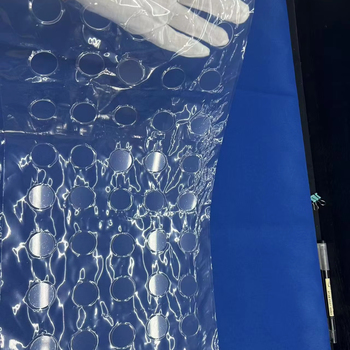

Custom Polish 100+ Sold Precision Quartz Disc

Double-Side Polished JGS2 Quartz Circular Window for Industrial Lighting

$1.00 MOQ: 10 pcs

Technical Specifications & Material Grade Comparison (E-E-A-T Guide)

Engineers at Donghai County Nivra Quartz Products Co., Ltd. inspect all fused quartz plates and discs for bubble inclusion, parallel error, and optical flatness. We select specific synthetic or natural crystal grades based on your spectral and thermal operational parameters:

Optical Grade Wavelength Transmission Hydroxyl (OH) Content Primary Industrial Applications
JGS1 (Synthetic Fused Silica) 185 nm – 2500 nm (Deep UV to VIS) ≤ 1200 ppm UV laser optics, excimer laser windows, photolithography mask substrates
JGS2 (Optical Fused Quartz) 220 nm – 2500 nm (Near UV to VIS) ≤ 200 ppm High-temperature viewports, furnace sight glasses, optical mirror blanks
JGS3 (Infrared Fused Quartz) 260 nm – 3500 nm (VIS to Far IR) ≤ 5 ppm (Water-Free) Infrared sensors, pyrometer windows, IR thermal heating elements
Precision Quartz Bars Solid round & square rods Custom annealed Light guides, support rails, semiconductor wafer processing fixtures

Request a Custom Quote or Material Sample

Need non-standard geometries, custom drill holes, stepped edges, or special optical coatings? Send your technical drawings to our engineering team for immediate review within 5 hours.

Send an Inquiry
