Featured Semiconductor & Optical Quartz Components
Engineered directly from Donghai Nivra Quartz Products Co., Ltd., these eight core product groups provide Zurich research institutions and industrial cleanrooms with thermal stability up to 1450°C and ultra-low elemental contamination.

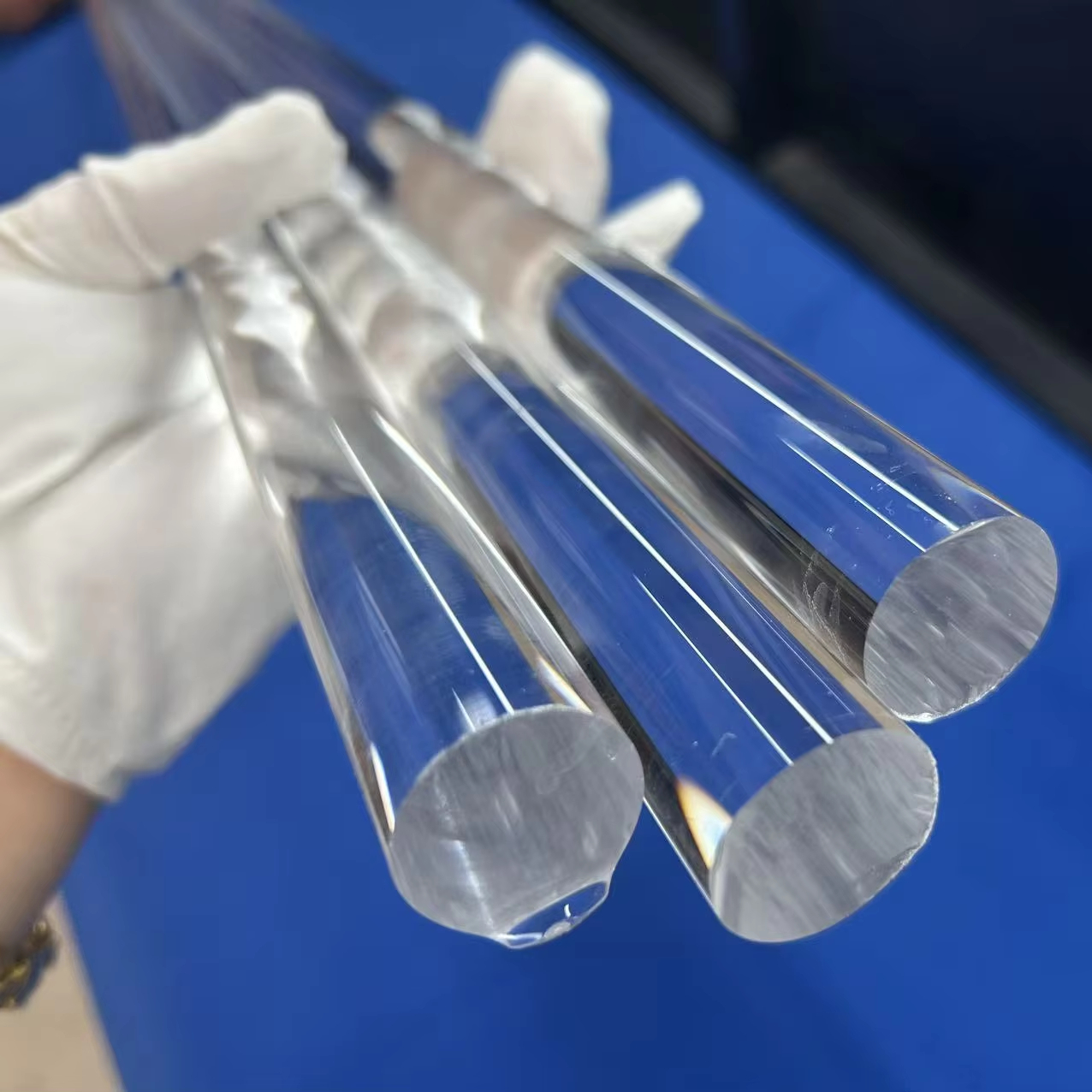

The Factory Produces High-purity Fused Quartz Large Diameter Round Rods
Cutting, Bending & Welding | Tight Tolerances View Specifications →
Strategic Fused Quartz Supply for Zurich's Microelectronics Ecosystem
The Greater Zurich Area represents one of Europe's most sophisticated and demanding epicenters of advanced nanotechnology, quantum computing development, and specialized microelectronics. Hosting prestigious research powerhouses such as ETH Zurich (Eidgenössische Technische Hochschule Zürich), the Binnig and Rohrer Nanotechnology Center (BRNC) jointly operated with IBM Research Europe in Rüschlikon, alongside cutting-edge spin-offs in Dübendorf and micro-optics manufacturers along the Limmat valley, this canton has forged an unmatched standard for micro- and nanofabrication reliability.
In front-end thermal diffusion, Low-Pressure Chemical Vapor Deposition (LPCVD), Rapid Thermal Processing (RTP), and wet chemical processing, the physical wafer boat acts as an active chemical and thermal interface rather than a passive carrier. At process temperatures exceeding 1050°C, ordinary quartz hardware suffers from micro-crystallization (devitrification), structural sag, and the volatilization of trace alkali metals (such as Lithium, Sodium, and Potassium) that migrate directly into silicon, Gallium Nitride (GaN), or Silicon Carbide (SiC) lattices. As a leading manufacturer operating from China's crystalline epicenter—Donghai County—Donghai County Nivra Quartz Products Co., Ltd. fills this exact technological gap. We engineer and export high-purity semiconductor quartz boats specifically qualified to satisfy the low-volume, ultra-high-mix (HMLV) precision manufacturing models characteristic of Zurich's research cleanrooms and specialized wafer foundries.
Semiconductor Quartz Boat Portfolio: Geometric & Thermal Engineering
Modern wafer fabs require distinct quartz boat topologies depending on atmospheric gas dynamics, wafer loading mechanics, and furnace tube orientation. Nivra Quartz manufactures an extensive spectrum of custom carrier geometries optimized to eliminate process slip-lines, eliminate thermal shielding, and facilitate frictionless robotic transfer.
Horizontal Diffusion Boats
Designed for classic horizontal tube furnaces executing boron/phosphorus prediffusion, wet/dry thermal oxidation, and high-temperature annealing. Features high-stability twin or quad-rod configurations with precision laser-notched slot spacing accommodating 2-inch, 3-inch, 100 mm (4-inch), and 150 mm (6-inch) wafers.
Vertical Furnace Boats (LPCVD)
Engineered for vertical thermal reactors in sub-micron cleanrooms. Constructed with slotted quartz plates or monolithic solid rods fire-welded to top and bottom lifting disks. Delivers radial symmetry to ensure zero rotational wobble during high-speed wafer spinning and uniform boundary layer deposition during polysilicon and silicon nitride growth.
Wet Etch & Cleaning Baskets
Manufactured specifically for harsh chemical baths including Piranha (H₂SO₄ + H₂O₂), SC-1, SC-2, and buffered oxide etch (BOE). Utilizing seamless CNC milling and flame-smoothed edges to prevent particle entrapment and minimize fluid drag during chemical rinse-and-dry cycles.
High-Purity Quartz Chemical Composition & Trace Metal Limits
For Zurich cleanroom standards (ISO Class 3 to Class 6), Nivra Quartz enforces stringent chemical impurity ceilings across all raw fused quartz batches. Below are typical maximum elemental impurities (measured in parts per million by weight - ppm):
| Element Impurity | Standard Semiconductor Grade | Ultra-High Purity Optical / JGS1 | Impact on Zurich Wafer Yield |
|---|---|---|---|
| Iron (Fe) | ≤ 0.20 ppm | ≤ 0.05 ppm | Eliminates deep-level trap centers that degrade carrier lifetime |
| Aluminum (Al) | ≤ 14.0 ppm | ≤ 1.0 ppm | Prevents uncontrolled p-type surface doping in intrinsic silicon |
| Sodium (Na) | ≤ 0.70 ppm | ≤ 0.10 ppm | Prevents gate dielectric breakdown and mobile ionic threshold shifting |
| Potassium (K) | ≤ 0.40 ppm | ≤ 0.05 ppm | Halts high-temperature alkali drift into thermal gate oxides |
| Copper (Cu) | ≤ 0.05 ppm | ≤ 0.01 ppm | Avoids fast-diffusing metallic precipitation and junction leakage |
| Hydroxyl content [OH⁻] | < 30 ppm (Thermal Grade) | < 5 ppm (JGS3) / < 200 ppm (UV) | Minimizes structural viscosity drop at continuous 1150°C operation |
Localized Application Scenarios in the Greater Zurich Area
The unique composition of Zurich's micro-technology industry requires a versatile manufacturing partner capable of executing customized, short-run, high-precision orders rather than standard megavolume commodity tubing.
Quantum Computing
In the cutting-edge laboratories of Rüschlikon and ETH Zurich, researchers build superconducting qubits and ion traps. Nivra’s low-loss, ultra-clean fused silica wafer boats ensure zero background radioactive emissions or metallic cross-contamination during ultra-high vacuum (UHV) annealing.
MEMS & Micro-Sensors
Switzerland’s precision watchmaking heritage has evolved into world-class MEMS pressure sensors, accelerometers, and microfluidics. Nivra designs custom-pitch quartz boats that secure ultra-thin (100–200 μm) etched wafers without micro-chipping slot edges.
Photonic Integrated Circuits
Silicon photonics and Lithium Niobate on Insulator (LNOI) technologies are heavily pioneered in Zurich. Fused silica boats provide ultra-uniform chemical vapor deposition of cladding layers with minimal thickness variation across 100 mm and 150 mm wafers.
Compound Semi (SiC/GaN)
Wide-bandgap power electronics fabrication requires high-temperature gate oxidation furnaces operating continuously above 1150°C. Nivra’s low-OH synthesized fused quartz boats eliminate tube-sag and structural creep over prolonged thermal cycles.
Zurich's Semiconductor Evolution: European Chips Act & Supply Chain Resilience
While Switzerland remains politically distinct from the European Union, its semiconductor and advanced physics institutions are deeply integrated into the continent-wide European Chips Act research consortiums. Three macro trends currently define the procurement landscape across Zurich-based cleanrooms:
1. Custom Prototypes Over Massive Series
Unlike mega-scale foundry hubs in East Asia that require tens of thousands of uniform boats per quarter, Zurich's innovation cluster demands high-mix low-volume (HMLV) fabrication. University labs, corporate incubators, and pilot foundries continuously alter wafer diameters, slot widths, and substrate thickness. Nivra's agile CAD-to-flame processing allows batch sizes as small as 1 to 5 pieces without exorbitant non-recurring tooling fees.
2. Rapid Supply Chain De-Risking
European supply chain disruptions have heightened cleanroom awareness regarding sole-source dependencies. Swiss engineering teams seek direct, reliable relationships with primary quartz processors rather than relying entirely on multi-tier local distributors who mark up standard quartzware by 300% to 500% with multi-month backlogs. Nivra bridges this with rapid air courier shipping direct to Zurich-Kloten Airport (ZRH).
3. Strict Sub-ppb Yield Enhancement
As features shrink toward quantum thresholds, device failures stem not from mechanical defects, but from chemical contamination at the atomic scale. Fabs across the Canton of Zurich are systematically replacing legacy, recycled quartz boats with new, certified ultra-high purity virgin fused silica that has undergone verified de-ionized ultrasonic washing and hermetic vacuum containment.
Direct Donghai Manufacturing Strength: The Nivra Quality Equation
Founded in February 2019 at 285 Heping East Road, Lianyungang, Jiangsu, Donghai County Nivra Quartz Products Co., Ltd. sits at the heart of China’s historic crystal and quartz capital. We unify raw ingot synthesis, CNC cutting, automated grinding, laser slotting, and flame-torch fabrication under one roof.
Donghai Raw Material Direct
Direct access to Donghai’s world-renowned high-purity natural silica sand and high-grade synthetic silicon tetrachloride preforms. This ensures lower raw material acquisition costs, stable thermal expansion coefficients (5.5 × 10⁻⁷ /°C), and certified impurity profiles.
Precision CNC & Flame Forming
Staffed by 101–200 skilled craftsmen and technicians. We combine 5-axis CNC diamond wheel groove grinding with oxy-hydrogen flame fire-polishing to remove all micro-fractures, ensuring exceptional mechanical rigidity without introducing thermal strain.
Rigorous QA & Cleanroom Pack
Every boat is measured via Coordinate Measuring Machines (CMM) for slot pitch (±0.02 mm) and parallel alignment. Units undergo acid pickling, 18.2 MΩ·cm DI water rinsing, Class 100 cleanroom drying, and multi-layer vacuum heat-sealed packaging for safe transit to Zurich.
Fast Engineering Response
Our technical sales engineering team operates with an average inquiry response rate of 88.89% and delivers feasibility feedback within 5 hours. Complete 2D/3D drawing analysis (STEP, DWG, DXF) ensures precision custom fabrication on every prototype.
Frequently Asked Questions for Zurich Engineers & Buyers
Key technical, regulatory, and logistics answers compiled specifically for procurement managers, cleanroom heads, and nanofabrication specialists operating in Switzerland.
What material grades (JGS1, JGS2, JGS3) do you specify for semiconductor wafer boats vs optical parts? +
For semiconductor wafer boats and diffusion furnace components, we utilize high-purity thermal-grade fused quartz (electrically fused natural quartz crystals with low hydroxyl content, typically <30 ppm OH⁻). This low-OH concentration is critical to maintain structural viscosity, prevent sagging at temperatures between 1050°C and 1250°C, and resist devitrification into cristobalite. Conversely, for deep-UV optical applications, lithography masks, and laser viewports, we specify synthetic fused silica (JGS1), which exhibits superior deep-UV transmission down to 185 nm and virtually zero bubble inclusions. JGS2 is recommended for standard UV-visible inspection windows, while JGS3 is selected for infrared applications extending out to 3500 nm due to its minimal absorption bands.
Can Nivra Quartz produce custom wafer boats directly from our CAD drawings (STEP, DWG, PDF)? +
Yes, absolutely. A significant portion of our exports to Swiss and Western European academic cleanrooms consists of fully custom prototypes and bespoke low-volume replacement hardware. You can submit your 3D CAD files (STEP, IGES) or 2D dimensioned engineering drawings (DWG, DXF, or PDF). Our engineering team evaluates slot angle, bottom clearance, cantilever loading points, slot width (e.g., 0.5 mm to 3.0 mm), and wafer tilt tolerances within 5 hours, providing DFM (Design for Manufacturability) advice to optimize both structural life and furnace yield.
What slot tolerances and pitch precision can you maintain on multi-wafer carriers? +
Our computer-controlled 5-axis ultrasonic CNC grinding machines achieve standard slot width tolerances of ±0.05 mm, with specialized ultra-precision machining achieving up to ±0.02 mm upon request. Cumulative pitch error across a 25-wafer or 50-wafer carrier is maintained within ±0.10 mm. This strict dimensional control prevents wafer pinching, eliminates robotic transfer arm misalignment, and ensures uniform inter-wafer reactant gas dynamics in high-vacuum chemical vapor deposition (CVD) tubes.
What are the maximum continuous and short-term thermal operating thresholds for your quartz boats? +
Our clear fused semiconductor quartz components sustain continuous working temperatures of approximately 1100°C to 1150°C in inert, reducing, or oxidizing atmospheres. Short-term peak thermal spikes can safely reach up to 1450°C without mechanical failure. The transformation point occurs at roughly 1075°C, the annealing point is at approximately 1180°C, and the softening point is reached at 1683°C. To ensure maximum longevity, we advise users to avoid rapid temperature quenching directly through the alpha-beta cristobalite inversion window (around 200°C to 275°C) if any surface micro-devitrification has developed after extensive furnace runs.
How do you manage international logistics, fragility protection, and Swiss customs clearance into Zurich? +
To eliminate shipping damage, each quartz boat undergoes thorough ultrasonic cleaning, followed by vacuum bagging in antistatic PE film within a cleanroom environment. The unit is suspended inside customized high-density EPE foam cradles and housed in robust, double-wall export cartons or international-standard fumigation-free plywood crates. We provide express air courier delivery (DHL, FedEx, UPS, or air freight cargo directly into Zurich Airport ZRH) under Incoterms including DAP, CIP, or DDP. All documentation—including commercial invoices with correct Swiss customs HS codes (7002/7017), certificates of conformity, and packing lists—is pre-cleared for rapid customs processing.
What is the Minimum Order Quantity (MOQ) for custom-built quartz wafer boats? +
We maintain an agile, customer-centric approach: our Minimum Order Quantity for customized semiconductor quartz boats and complex laboratory glassware is 1 piece. This enables university research labs, startups, and R&D pilot lines across Zurich, Winterthur, and surrounding cantons to validate custom hardware designs, test thermal performance, and qualify dimensions prior to committing to larger replacement batches or production volumes.
How do your products compare with domestic European or Swiss distributors regarding price and lead time? +
European distributors frequently source their basic quartz tubes or blanks from East Asia before carrying out local finishing, resulting in compounding markups (often 3x to 6x factory direct pricing) and extended 12 to 20-week lead times. By partnering directly with Donghai County Nivra Quartz Products Co., Ltd., you eliminate intermediate distributor tiers, gain direct communication with fabrication engineers, and benefit from production lead times of 10 to 18 days for custom orders, coupled with express 3 to 5-day air delivery to Zurich.
Do your quartz products undergo thermal stress-relief annealing before export? +
Yes. Any flame welding, rod joining, or mechanical grinding introduces residual internal stress into fused silica glass. All Nivra semiconductor quartz boats undergo controlled thermal annealing in programmable electric muffle furnaces. Hardware is heated to approximately 1180°C, held at temperature to fully relieve internal strain, and cooled slowly under strict ramp rates. Finished parts are inspected using cross-polarizing strain viewers to ensure birefringence remains well within permissible optical and semiconductor standards, guaranteeing resistance to thermal shock.
Accelerate Your Zurich Cleanroom & Fabrication Timelines
Whether you require replacement diffusion boats for a 150 mm furnace line, specialized quartz reactor tubes, or a bespoke wafer carrier built from your CAD files, our Donghai engineering team is ready to analyze your technical requirements.
Submit your design parameters, drawings, or operational inquiries today. Our engineering desk replies within 5 hours with detailed feasibility and quotation data.
