Featured Semiconductor & Optical Glass Assemblies
Precision-fabricated high-purity quartz and sapphire components engineered to meet exact industrial tolerances for high-temperature diffusion, cleanroom optical testing, and chemical process carriers in the Philippines.
Clear Quartz Spiral Tube for Optics Laboratory Use with Moulding and Bending Services
220V 700W 300MM 10mm Diameter Infrared Heating Tube Carbon Fiber/halogen Tube/graphene Tube
Laboratory Fused Silica Quartz Glass Flask

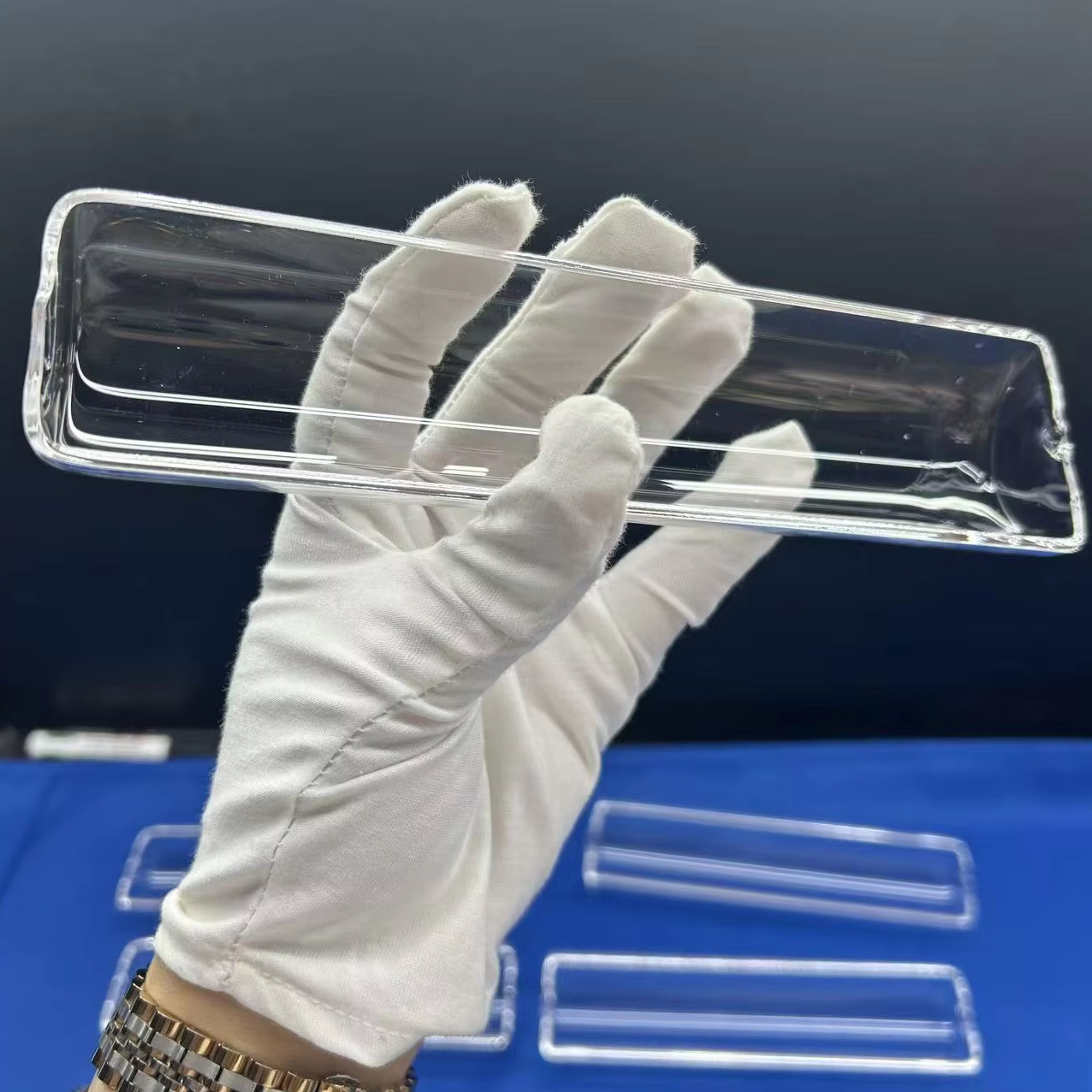

Customized Clear Fused Silica Quartz Boat Polished Clear Quartz Wafer Carrier
Precision Machined Semiconductor Quartz Ring
High-Purity Fused Quartz Large Diameter Round Rods Cutting Welding & Bending

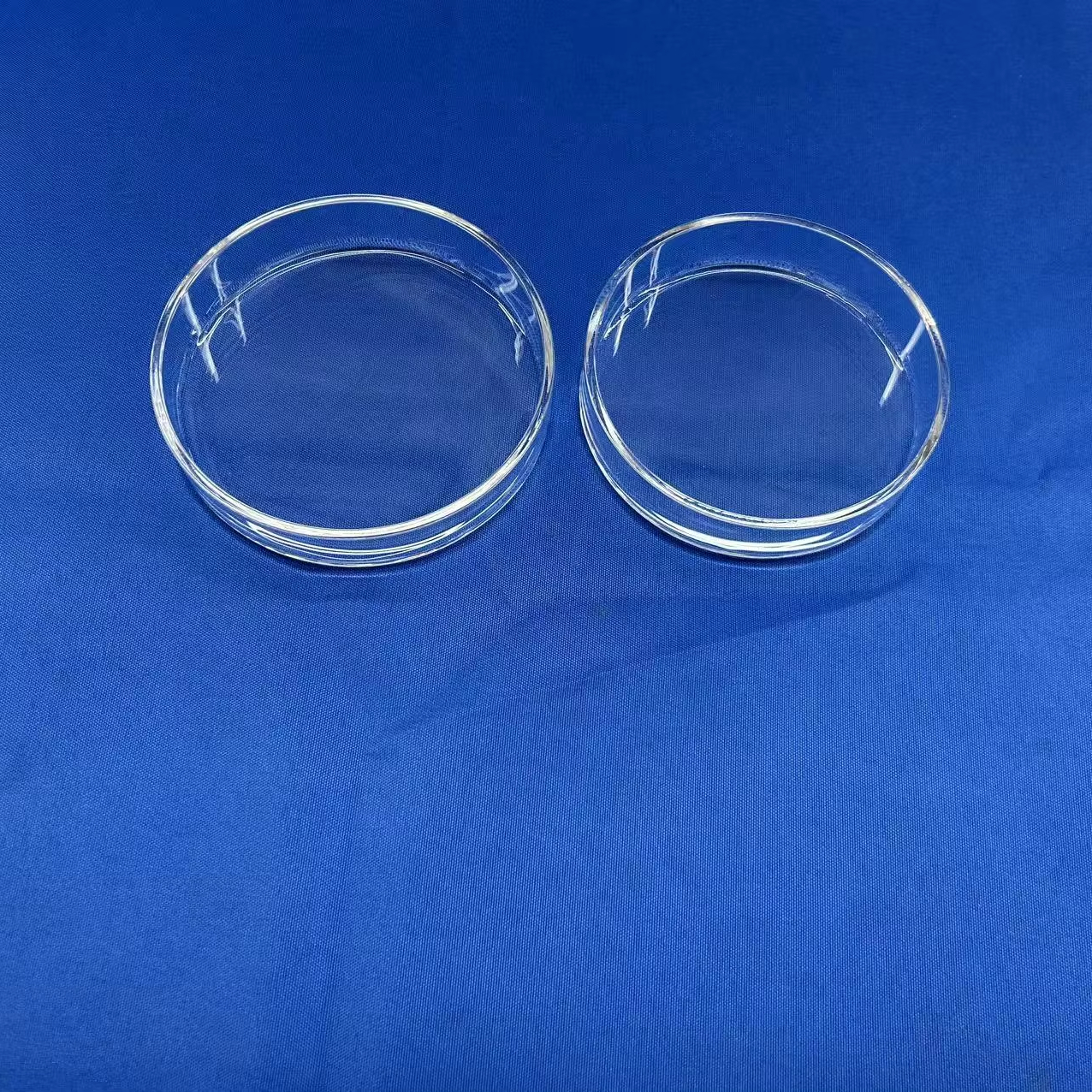

Factory Customized High-purity Quartz Glass Petri Dishes with Lids
Custom Large-diameter High-purity Fused Quartz Transparent Glass Tubes
Single-Crystal Sapphire (α-Al₂O₃) Physical & Optical Mechanics
Delivering unmatched mechanical rigidity, broadband electromagnetic transmission (190 nm to 5,000 nm), and dielectric stability for demanding optoelectronic integration across Cebu's export manufacturing corridors.
Crystallographic Precision
Synthetic monocrystalline corundum grown via Kyropoulos (KY) and Heat Exchanger Method (HEM) delivers zero-dislocation substrates aligned precisely along fundamental lattice orientations.
- C-Plane (0001): Dominant substrate for GaN/InGaN blue/green LED epitaxy and micro-display integration.
- A-Plane (11-20): Preferred for high-isolation dielectric carriers, electro-optic modulators, and hybrid pick-and-place submounts.
- R-Plane (1-102): Critical for Silicon-on-Sapphire (SOS) ultra-fast RF IC packaging and aerospace radomes.
Extreme Thermal & Mechanical Armor
With a Mohs hardness of 9 (second only to diamond) and compressive strength exceeding 2,000 MPa, our sapphire optical substrates survive aggressive handling and thermal extremes.
- Melting Point 2,050 °C: Continuous operational threshold up to 1,800 °C without deformation or softening.
- Thermal Conductivity: 35 W/(m·K) at 100 °C, facilitating immediate heat dissipation in concentrated laser setups.
- Thermal Expansion: 5.8 × 10⁻⁶ /K matching modern wide-bandgap compound semiconductors.
Sub-Nanometer Optical Planarization
Fabricated with multi-stage Chemical Mechanical Planarization (CMP) in Class 100 cleanroom environments, preventing lattice strain and eliminating interfacial scattering.
- Surface Roughness (Ra): < 0.2 nm (2 Å) verified via Atomic Force Microscopy (AFM).
- Total Thickness Variation (TTV): < 2.0 µm across 2-inch to 8-inch substrate surfaces.
- Surface Quality: Scratch-Dig 10/5 or 20/10 per MIL-PRF-13830B optical specifications.
| Material Engineering Characteristic | Optical Single-Crystal Sapphire (Al₂O₃) | JGS1 Synthetic Fused Silica | Borosilicate Float Glass (D263 / BK7) |
|---|---|---|---|
| Crystal Structure & Cleavage | Hexagonal / Rhombohedral (Single Crystal) | Amorphous (Non-crystalline network) | Amorphous Borosilicate Network |
| Optical Spectral Transmission Range | 0.19 µm – 5.0 µm (Deep UV to Mid-IR) | 0.185 µm – 2.5 µm (UV to Near-IR) | 0.35 µm – 2.0 µm (Visible spectrum focus) |
| Refractive Index (nd @ 589 nm) | 1.768 (Birefringent: No=1.768, Ne=1.760) | 1.458 (Isotropic) | 1.523 (Isotropic) |
| Mohs Hardness / Knoop Hardness | Mohs 9 / 2,200 kg/mm² | Mohs 5.5–6.5 / 600 kg/mm² | Mohs 5.5 / 520 kg/mm² |
| Maximum Working Temperature | 1,800 °C (Short peaks to 2,000 °C) | 1,100 °C (Short peaks to 1,450 °C) | 450 °C – 500 °C |
| Chemical Inertness | Complete resistance to HF at room temp, all standard alkalis and acids | Vulnerable to Hydrofluoric (HF) & Hot H₃PO₄ | Moderate acid resistance; etched by fluorides & caustic alkalis |
Localized Application Scenarios Throughout the Cebu Industrial Hub
Metro Cebu serves as the premier manufacturing gateway of the Visayas. From precision electronics assembly in Lapu-Lapu City to subsea engineering across the Mactan Channel, our optical sapphire substrates and quartz fixtures drive local cleanroom performance.
1. Semiconductor Back-End Assembly: MEZ I & MEZ II
Inside the Mactan Economic Zones (MEZ I & II) in Lapu-Lapu City, top-tier multinational contract semiconductor manufacturers execute high-speed die attach, wire bonding, and automated optical inspection (AOI). Our double-side polished sapphire wafer carriers and optical inspection windows provide:
- Zero micro-scratch defect thresholds under 100x laser-confocal wafer inspection.
- Uncompromising dimensional flatnesses preventing vacuum-loss inside pick-and-place automated die-sorters.
- High thermal-shock tolerance during localized thermal compression bonding (TCB).
2. Optoelectronics & Camera Sensor Modules: CLIP Ecosystem
At the Cebu Light Industrial Park (CLIP), precision sensor manufacturers assemble CMOS imaging systems, optical transceivers, and LiDAR sub-assemblies. Sapphire substrates serve as vital infrared-cut window protectors and hermetic packaging lids:
- Low wavefront distortion with transmitted wavefront error (TWE) < λ/4 @ 632.8 nm.
- Hermetic metallization capabilities (Ti/Pt/Au or Cr/Au perimeter coatings) for fluxless reflow soldering.
- Deep ultraviolet (UV) to near-infrared (NIR) high-transmittance optical coatings.
3. Subsea Oceanographic Instrumentation & Shipbuilding
Balamban and the industrial coastal yards facing the Mactan Channel deploy advanced autonomous underwater vehicles (AUVs) and hyperbaric exploration instrumentation. Subsea optical telemetry demands viewing windows capable of enduring massive hydrostatic pressure:
- Withstands extreme deep-ocean pressure (>10,000 PSI) with zero optical birefringence creep.
- Impervious to saltwater cavitation erosion, barnacle adhesion scraping, and bio-fouling degradation.
- Thick-gauge precision ground-edge stepped discs custom-beveled for high-pressure O-ring sealing.
4. Analytical Labs & Visayas Biotechnology Clusters
Academic and industrial testing labs in Cebu City (from Mandaue testing facilities to healthcare institutions) use our quartz labware and optical sapphire cuvette windows for spectrophotometric analysis:
- High UV transmission down to 190 nm for precise protein and DNA absorbance measurements.
- Impervious to organic solvents, harsh reagents, autoclave cycles, and acid digestions.
- Optical clarity eliminating fluorescent background noise during high-throughput biological screening.
Cebu Industrial Procurement Trends & Supply Chain Modernization
As Central Visayas transitions from legacy consumer electronics packaging into automotive power electronics, wide bandgap semiconductors, and aerospace avionics, optical and substrate specifications have tightened significantly.
Migration to GaN-on-Sapphire Power Modules
Cebu assembly lines are incorporating Gallium Nitride (GaN) high-electron-mobility transistors (HEMTs). Sapphire's lattice compatibility along the C-plane provides the most cost-efficient, mechanically stable foundation for multi-kilowatt power conversion chips used in regional electric vehicle and industrial grid electronics.
Zero-Defect Cleanroom Packaging (CREATE Act)
Supported by the Philippine Corporate Recovery and Tax Incentives for Enterprises (CREATE) Act, Cebu facilities are upgrading to Class 10/100 microenvironments. Suppliers must provide sub-micron double-vacuum packaging with nitrogen purging to mitigate tropical humidity degradation during transit.
Demand for Consolidated Consumables
Procurement departments in Cebu are consolidating vendor manifests. By combining precision monocrystalline sapphire windows with auxiliary fused quartz boats, diffusion tubes, and quartz rings in unified shipments, manufacturing plants cut customs overhead and maintain single-point vendor accountability.
Donghai County Nivra Quartz Products Co., Ltd. Advantage
Situated in Donghai County, Jiangsu—the premier crystal and quartz processing capital—Nivra Quartz operates integrated cutting, grinding, double-sided optical polishing, and flame-working facilities catering to global OEM and Tier-1 electronics clients.
End-to-End CNC Diamond Machining
Ultra-precision 5-axis ultrasonic CNC milling centers capable of creating custom bevels, through-holes, complex counterbores, and stepped profiles in sapphire and fused silica with ±0.005 mm repeatability.
Strict Metrology & Cleanroom QC
Every substrate lot is rigorously evaluated using Zygo optical interferometers, coordinate measuring machines (CMM), spectrophotometers (190 nm to 3,500 nm), and Class 100 particle-free cleaning systems prior to sealing.
Tropical Shock-Proof Crating
Purpose-engineered export crating featuring high-density closed-cell EPE foam suspension, anti-static moisture barrier bags (MBB) with active desiccant packs, and impact-detecting drop-n-tell indicators for international transit.
5.0 / 5.0 Proven Export Credibility
Alibaba verified manufacturing facilities with over 40 major international export transactions across North America, Europe, and Southeast Asia. On-site checked facility located at 285 Heping East Road, Lianyungang, Jiangsu.
Frequently Asked Questions for Cebu City Industrial Buyers
Key operational insights regarding PEZA documentation, Port of Cebu logistics, customs clearances, quality compliance, and tropical storage handling.
How do you facilitate PEZA tax-exempt documentation for enterprises in MEZ or CLIP?
For Philippine Economic Zone Authority (PEZA) registered locator enterprises operating within the Mactan Economic Zone (MEZ I & II), Cebu Light Industrial Park (CLIP), or Naga Valley Industrial Park, we supply complete commercial shipping documentation compliant with Bureau of Customs (BOC) and PEZA requirements. This includes formal Commercial Invoices, detailed Packing Lists with exact HS code classifications (typically 7104.91.00 for synthetic sapphire or 7020.00.11 for quartz labware/industrial fixtures), Certificates of Origin (COO), and Batch Certificates of Conformance (COC). This enables local customs brokers to promptly execute automated e-IPS (Electronic Import Permit System) declarations and clear items under Zero-Rated VAT and duty-exempt status without processing delays.
What are the recommended transit routes and lead times to Mactan-Cebu International Airport (CEB)?
For high-priority R&D wafers, prototype substrates, or urgent cleanroom replacements, we utilize priority express air cargo directly routing into Mactan-Cebu International Airport (CEB / RPVM) via DHL, FedEx, or SF Express, featuring door-to-door transit times of 3 to 5 business days from our Donghai facility. For bulk consumable shipments (such as 100+ unit quartz diffusion tubes, heavy quartz boats, or volume optical window blanks), consolidated LCL/FCL ocean freight ships via Lianyungang/Shanghai port directly into the Port of Cebu / Cebu International Port (CIP), with typical maritime transit averaging 14 to 18 days.
How does your packaging prevent moisture corrosion and tropical fungal hazing in Central Visayas?
Metro Cebu's coastal environment presents ambient relative humidities routinely exceeding 80–85%. To prevent surface moisture condensation, microscopic salt aerosol pitting, and fungal spotting during ocean and tarmac handling, all polished sapphire substrates and quartz optics undergo an ultrasonic multi-stage IPA bath, followed by hot air drying in a Class 100 cleanroom. Wafers are packed in fluoropolymer (PTFE/PFA) single-wafer cassettes or multi-wafer canisters, double-vacuum sealed inside metallized moisture-barrier foil bags (MIL-PRF-81705D compliant) with active cobalt-free silica desiccant pouches and visual humidity indicator cards (HIC).
What crystallographic plane should we specify for optical vs. semiconductor applications?
Specifying the proper crystallographic plane is essential to performance and cost efficiency:
- C-Plane (0001): Most cost-effective and commonly utilized for III-V nitride (GaN) epitaxial growth, micro-LED architectures, high-pressure sight glasses, and scratch-resistant consumer camera lens covers where c-axis birefringence along the normal is acceptable.
- A-Plane (11-20): Uniform optical index across orthogonal orientations, ideal for electro-optic devices, optical modulators, and hybrid semiconductor isolation substrates.
- R-Plane (1-102): Features a specific 57.6° tilt relative to the C-axis, predominantly specified for heteroepitaxial deposition of silicon in ultra-high-frequency radiation-hardened microelectronics (Silicon-on-Sapphire / SOS).
Can Nivra Quartz manufacture custom stepped, beveled, or metallized sapphire viewports to engineering prints?
Yes. We operate extensive OEM/ODM manufacturing lines accepting CAD files in STEP, DWG, DXF, or PDF formats. Beyond standard round discs, we produce high-precision custom sapphire geometries including rectangular stepped viewports, double-side chamfered optics, convex/concave meniscus profiles, and laser-drilled micro-apertures down to Ø 0.2 mm. Furthermore, we offer custom anti-reflective (AR) optical coatings (operating from 248 nm deep UV through 1064 nm YAG to 3–5 µm mid-IR) as well as solderable perimeter metallization (e.g., Ti-Pt-Au, Cr-Ni-Au) for hermetic brazing into high-vacuum or marine sensor housings.
What is your typical Minimum Order Quantity (MOQ) and sample validation protocol?
We actively support both R&D pilot-runs and mass-volume OEM manufacturing. For standard optical windows, quartz tubes, and polished wafers, our MOQ starts at just 1 to 10 pieces, enabling quality assurance and process development engineers in Cebu to validate mechanical tolerances, surface finish (Ra), and optical transmission before greenlighting volume runs. Specialized custom CNC-machined components or tight-tolerance wafer runs typically start from 20 to 50 pieces. Full First Article Inspection (FAI) reports accompany all initial qualification batches.
Accelerate Your Optical & Semiconductor Cleanroom Production
Partner directly with Donghai County Nivra Quartz Products Co., Ltd. for factory-direct single-crystal sapphire substrates, custom optical windows, and ultra-high-purity quartz labware. Our senior engineering staff reviews technical drawings within 5 hours, providing DFM analysis, tolerance optimization, and guaranteed international delivery terms for the Metro Cebu industrial region.
