Precision Quartzware & Semiconductor Components
Direct OEM manufacturing from Donghai County Nivra Quartz Products Co., Ltd. supporting Liverpool's advanced technology cluster.
1. Executive Summary: The Semiconductor Quartzware Landscape in Liverpool
The Liverpool City Region (LCR) and the broader North West England industrial corridor—extending toward Sci-Tech Daresbury and the Silicon Sands initiative—are undergoing a rapid transformation into a premier hub for advanced materials, microelectronics, compound semiconductors, and quantum technology research. Central to this high-tech manufacturing expansion is the requirement for ultra-high purity process consumables capable of withstanding extreme thermal environments without introducing metallic or ionic contaminants into silicon and compound (GaN/SiC) wafers.

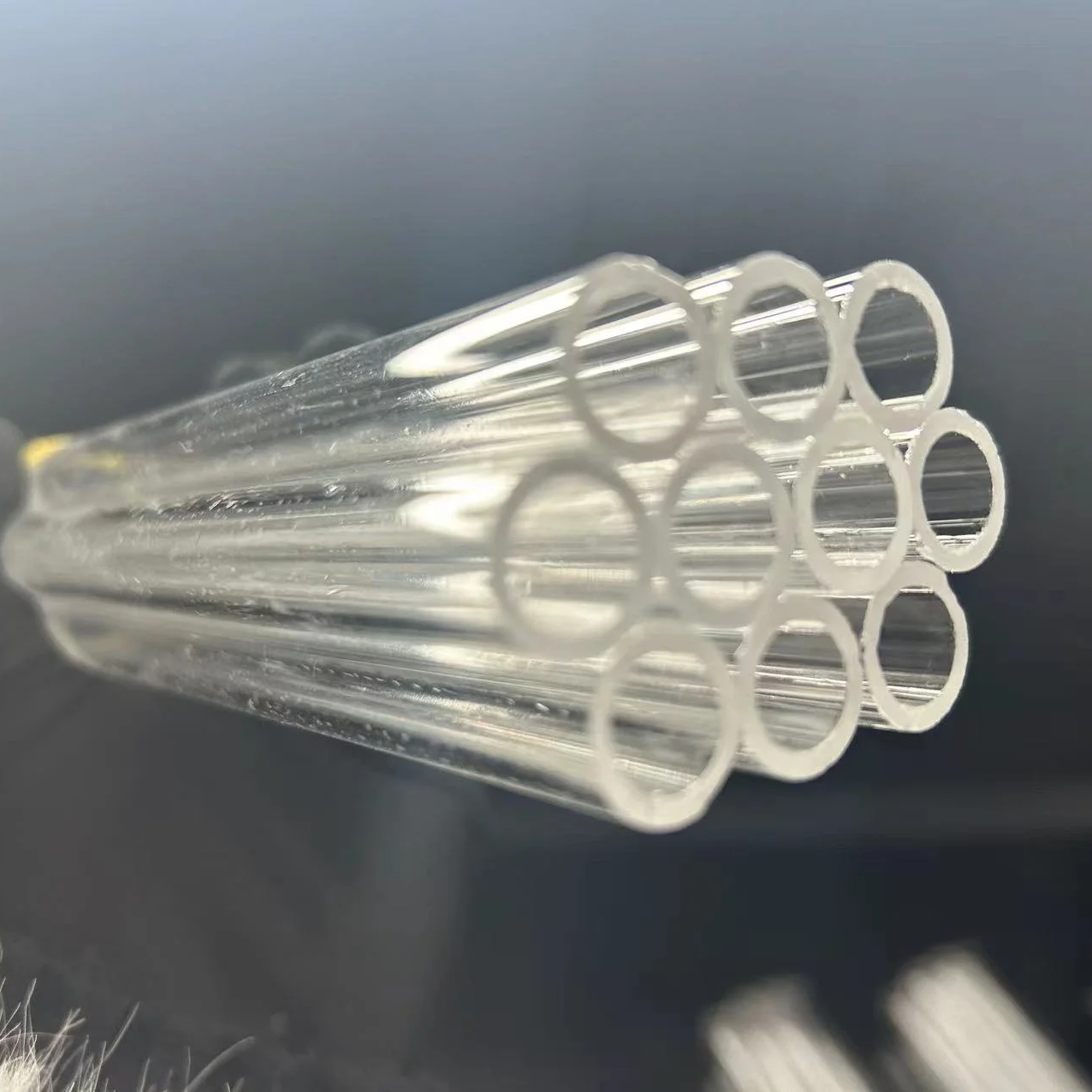

Donghai County Nivra Quartz Products Co., Ltd. stands as a premier global manufacturer and exporter specializing in custom OEM semiconductor quartz boats, quartz diffusion tubes, wafer carriers, and high-purity laboratory glassware. Situated in Donghai County—the globally acknowledged capital of natural quartz resource processing—Nivra Quartz bridges the gap between raw silica purity and precision ultra-fine CNC machining. For fab engineers, procurement specialists, and cleanroom facility directors in the Liverpool market, sourcing directly from a specialized OEM factory provides measurable advantages in lead-time reduction, dimensional fidelity, thermal lifetime extension, and total cost of ownership (TCO).
Information Gain Insight: Semiconductor quartz boats operated in Low-Pressure Chemical Vapor Deposition (LPCVD) and high-temperature oxidation furnaces suffer from premature devitrification if alkali metal concentrations (Na, K, Li) exceed 1.5 ppm. Nivra Quartz guarantees raw fused silica material with alkali levels strictly capped below 0.5 ppm, boosting operational thermal cycles in Liverpool cleanrooms by up to 35%.
Technical Specs & Material Grade Comparison
Selecting the optimal quartz substrate is critical for matching specific thermal expansion coefficients and optical transmission requirements across semiconductor fabrication steps. Below is a comprehensive engineering matrix detailing the material characteristics supplied to European OEM specs.
| Quartz Grade Parameter | High-Purity Natural Fused Silica | Synthetic Fused Silica (JGS1) | Opaque/Translucent Quartz (JGS3) |
|---|---|---|---|
| SiO2 Purity Level | ≥ 99.99% (4N8 - 5N) | ≥ 99.9999% (6N) | ≥ 99.95% |
| Hydroxyl (OH-) Content | < 30 ppm (Dehydroxylated < 5 ppm) | < 1000 ppm (Optically High) | < 10 ppm (IR Grade) |
| Maximum Working Temperature | 1150°C (Continuous) / 1350°C (Peak) | 1200°C (Continuous) / 1450°C (Peak) | 1100°C (Continuous) / 1300°C (Peak) |
| Thermal Expansion Coeff. (20-300°C) | 5.5 × 10-7 / K | 5.4 × 10-7 / K | 5.5 × 10-7 / K |
| Primary Applications in Liverpool Fabs | Wafer Boats, Diffusion Tubes, Bell Jars | UV Photolithography Masks, Optical Windows | Thermal Shielding, Muffle Tubes, Flanges |
2. Engineering Architecture of Custom OEM Semiconductor Quartz Boats
A semiconductor quartz boat (or wafer carrier) serves as the primary structural vehicle for holding delicate monocrystalline silicon wafers, SiC substrates, or sapphire discs during high-temperature thermal processing steps such as oxidation, diffusion, annealing, and chemical vapor deposition. The design geometry must account for uniform gas dynamic distribution, minimal shadowing effects, extreme mechanical rigidity, and precise thermal mass balance to prevent wafer warp or slip dislocation.
Key Customization Parameters for OEM Fabrication:
- Horizontal Ladder Boats vs. Vertical Batch Carriers: Designed for horizontal tube furnaces or automated vertical furnace carousels (compatible with ASM, TEL, and Kokusai tool architectures).
- Slot Geometry & Pitch Precision: Diamond-milled wafer slots manufactured with pitch tolerances of ≤ ±0.05 mm. Slot profiles are offered in shell-type, rod-type, or ladder-type configurations with polished edge radii to prevent wafer micro-chipping.
- Thermal Stress Relief Annealing: Every custom quartz boat undergoes a multi-stage controlled annealing profile up to 1180°C in clean electric kilns to eliminate residual stress induced during torch flame welding and diamond grinding.
- Surface Roughness (Ra): Precision optical flame polishing achieves a surface finish of Ra ≤ 0.2 μm, preventing particulate generation and chemical vapor absorption during processing.
Dimensional Quality Assurance: Nivra Quartz employs 3D coordinate measuring machines (CMM) and laser optical micrometers to verify tooth pitch, parallelism, and vertical orthogonality on every OEM batch before international export.
3. Localized Application Scenarios across the Liverpool & North West Tech Corridor
Liverpool’s industrial ecosystem presents unique, highly specialized demands for custom fused quartzware. Procurement dynamics differ significantly between commercial volume manufacturing, pilot-scale lines, and academic research cleanrooms. Below are key localized operational scenarios where Nivra Quartz components deliver vital operational capabilities.
A. Silicon Sands & Advanced Microelectronics R&D
With Liverpool City Region committing substantial investment toward the "Silicon Sands" sustainable data center and microchip innovation zone, local research cleanrooms require custom quartz boats tailored for non-standard wafer sizes (2-inch, 3-inch, 4-inch, and 100mm/150mm hybrid lines). OEM custom fabrication allows research engineers to design bespoke horizontal ladder boats with integrated thermocouple sleeves and gas injection ports, speeding up experimental device prototyping.
B. Compound Semiconductor & Power Electronics (GaN on Si / SiC)
Fabs operating along the Liverpool Bay chemical and technological belt focusing on high-frequency power electronics utilize MOCVD and epitaxy equipment. Quartz components in these systems are exposed to aggressive corrosive gases (HCl, NH3) at temperatures exceeding 1200°C. High-purity synthetic fused silica boats and translucent heat shields supplied by Nivra Quartz withstand these aggressive chemical environments while minimizing trace iron and copper contamination.
C. Photovoltaic Cell Deposition & Solar Wafer Processing
North West England's renewable energy research and solar cell manufacturing initiatives rely on high-capacity quartz boats capable of carrying 156mm x 156mm or M10/M12 solar wafers through POCl3 liquid source diffusion furnaces. Nivra Quartz produces high-density 100-slot to 200-slot quartz boats featuring reinforced cross-beams designed to resist sagging under heavy thermal loads.
D. Analytical Spectroscopy & Medical Tech Glassware
Beyond wafer handling, Liverpool's thriving life science sector—anchored by Liverpool Science Park and local university research centers—demands high-precision quartz cuvettes, test tubes, spiral coils, and sight glass flanges. These components require 90%+ UV optical transmission down to 190 nm wavelength, met strictly by our synthetic JGS1 class quartzware.
Enterprise Advantages & Global OEM Capabilities
Donghai County Nivra Quartz Products Co., Ltd. combines local raw material control with world-class export standards.
Donghai Raw Material Hub
Located in Lianyungang, Jiangsu—China's crystal and quartz capital—giving us direct access to high-purity silica deposits and reducing raw material procurement costs by 20-30%.
Proven Verification & Scale
Established in Feb 2019, operating with 101–200 skilled glassblowers and CNC technicians. On-site audited by Alibaba.com with legal verification by leading third-party agencies.
Fast Response & High Rating
Measured response rate of 88.89% with average engineering feedback under 5 hours. Verified 5.0/5 rating across product quality, shipping speed, and customer service.
Full-Chain CNC Processing
In-house capability covering diamond sawing, CNC milling, centerless grinding, laser drilling, flame lathe welding, surface polishing, and high-temp annealing.
Export-Grade Safe Packing
Fragile quartzware is cleaned, sealed in dust-free polybags, suspended in high-density custom EPE foam, and encased in wooden cases to ensure 0% transit damage to the UK.
Flexible OEM/ODM MOQ
Supporting prototyping lines with low Minimum Order Quantities (MOQ from 1-10 pcs for custom tubes/boats) up to container-load mass production for international buyers.
Frequently Asked Questions for Liverpool & UK Procurement
Technical guidance for cleanroom engineers, procurement officers, and scientific buyers.
What is the typical lead time for custom OEM semiconductor quartz boats shipped to Liverpool?
For custom engineering designs based on CAD drawings (DWG/STEP/PDF), sample prototyping typically requires 7 to 12 working days. Batch production (50-200 units) takes approximately 2 to 3 weeks. Air express freight directly to Liverpool John Lennon Airport or Manchester Airport arrives in 4 to 6 transit days, while sea freight to the Port of Liverpool takes roughly 28 to 35 days.
How does Nivra Quartz ensure trace purity levels required by UK semiconductor fabs?
We source ultra-pure fused silica quartz sand with raw SiO2 purity exceeding 99.99%. Every batch undergoes Inductively Coupled Plasma Mass Spectrometry (ICP-MS) trace element analysis. Heavy metals (Fe, Cu, Ni) are controlled below 0.1 ppm, and alkali metals (Na, K, Li) are kept under 0.5 ppm to eliminate wafer cross-contamination inside diffusion furnaces.
Can you manufacture quartz boats matching existing ASM, TEL, or Thermco furnace tracks?
Yes. We specialize in OEM drop-in replacement quartzware. You can provide manufacturer part numbers, 2D blueprints, or send a sample boat to our factory. We replicate exact mounting pin positions, furnace base dimensions, and wafer pitch spacings with zero deviation.
What mechanisms prevent devitrification (cristobalite growth) on quartzware operating above 1100°C?
Devitrification occurs when surface contaminants (alkali salts, fingerprints, metal oxides) catalyze the phase transformation of amorphous silica into crystalline cristobalite at elevated temperatures. Nivra Quartz prevents this through automated multi-stage HF acid etching, high-purity DI water ultrasonic rinsing (18.2 MΩ·cm resistivity), cleanroom heat sealing, and providing cleanroom handling protocols to end users.
What custom tolerances can your CNC diamond machining achieve on wafer slot pitch?
Our 5-axis CNC grinding centers achieve slot width and pitch tolerances within ±0.03 mm to ±0.05 mm. Slot edge radii are flame-polished or micro-chamfered to eliminate stress risers and minimize wafer mechanical friction during robotic arm load/unload operations.
How are import tariffs and customs clearance handled for shipments entering the UK?
All goods exported by Donghai County Nivra Quartz Products Co., Ltd. are supplied with standard commercial invoices, packing lists, Certificate of Analysis (COA), and Certificate of Origin under HS Code 7017.10 (Quartzware for laboratory or industrial use). UK importers can clear customs seamlessly via DDP (Delivered Duty Paid) or DAP terms through DHL/FedEx/UPS or specialized freight forwarders at Liverpool ports.
Request a Custom Quartz Fabrication Quote
Send your CAD drawings, technical specifications, or sample requirements today. Our quartz engineering team will review your project and reply with a complete quotation within 5 hours.
